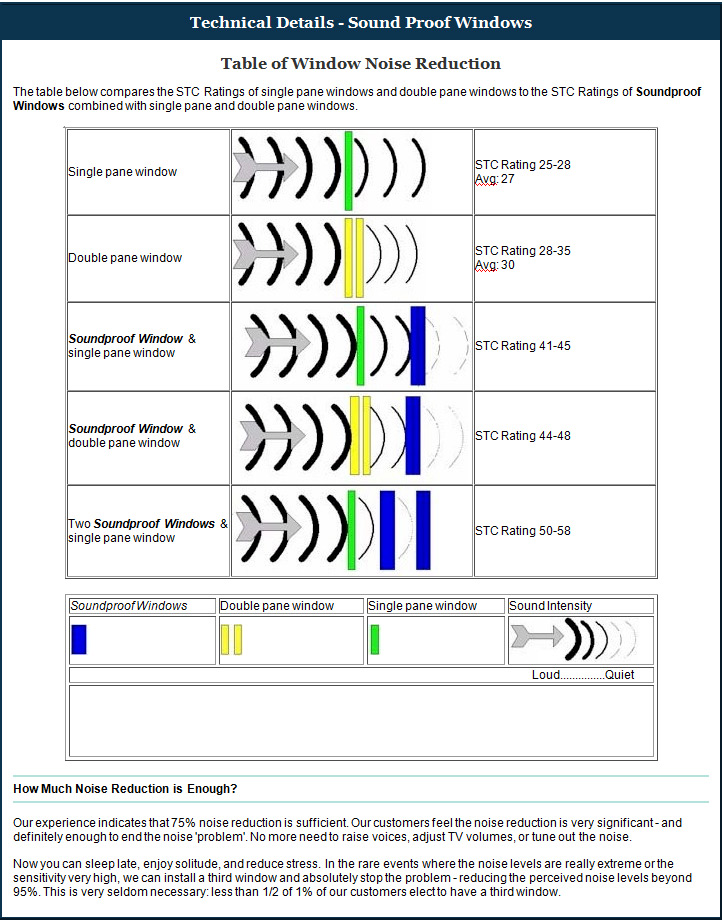

| Technical Details - Sound Proof Windows |
| |
Table of Window Noise Reduction |
| |
The table below compares the STC Ratings of single pane windows and double pane windows to the STC Ratings of Soundproof Windows combined with single pane and double pane windows. |
| |
Single pane window |
|
STC Rating 25-28
Avg: 27 |
Double pane window |
|
STC Rating 28-35
Avg: 30 |
Soundproof Window & single pane window |
|
STC Rating 41-45 |
Soundproof Window & double pane window |
|
STC Rating 44-48 |
Two Soundproof Windows & single pane window |
|
STC Rating 50-58 |
|
| |
Soundproof Windows |
Double pane window |
Single pane window |
Sound Intensity |
|
|
|
|
Loud...............Quiet |
|
| |
How Much Noise Reduction is Enough? |
| |
Our experience indicates that 75% noise reduction is sufficient. Our customers feel the noise reduction is very significant - and definitely enough to end the noise 'problem'. No more need to raise voices, adjust TV volumes, or tune out the noise. |
| |
Now you can sleep late, enjoy solitude, and reduce stress. In the rare events where the noise levels are really extreme or the sensitivity very high, we can install a third window and absolutely stop the problem - reducing the perceived noise levels beyond 95%. This is very seldom necessary: less than 1/2 of 1% of our customers elect to have a third window. |
| |
| |
|
|
|
 |
 |
|
|
|
|
| |
|
